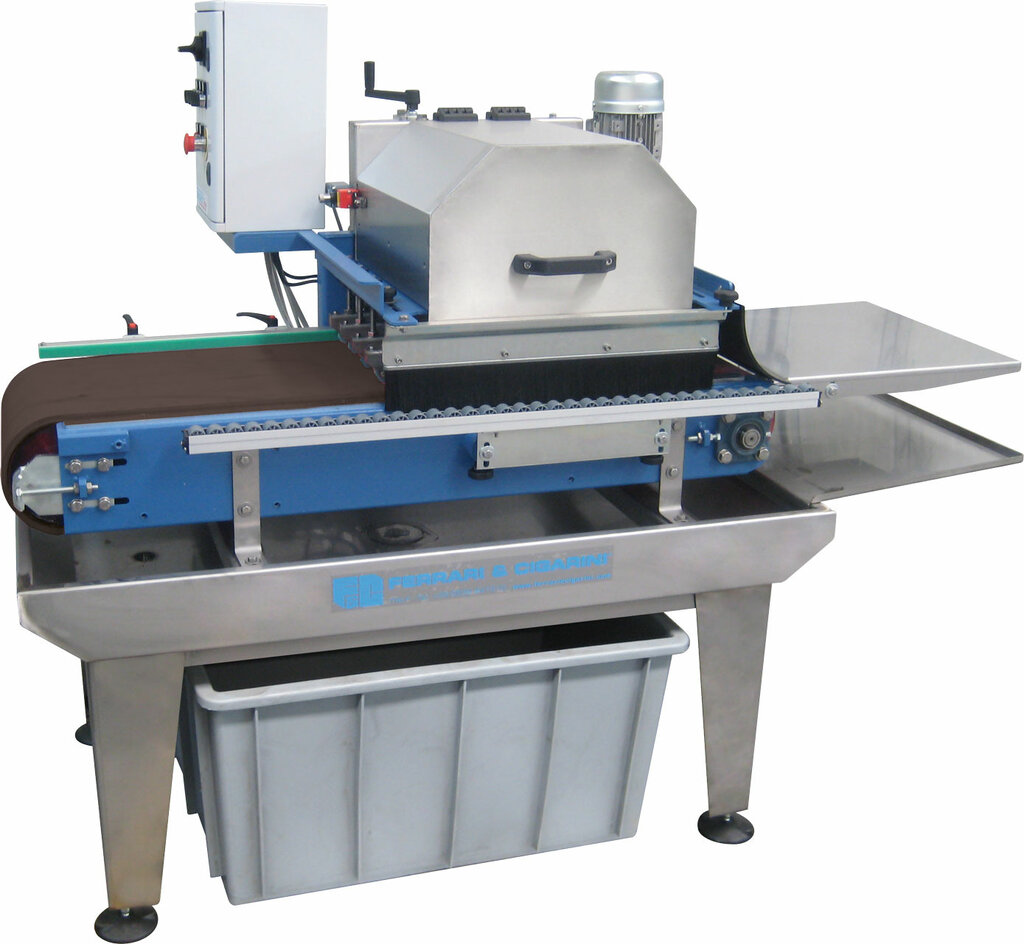

TMC/1 - MULTIPLE AUTOMATIC CUTTING MACHINE WITH 1 HEAD
PATENTED

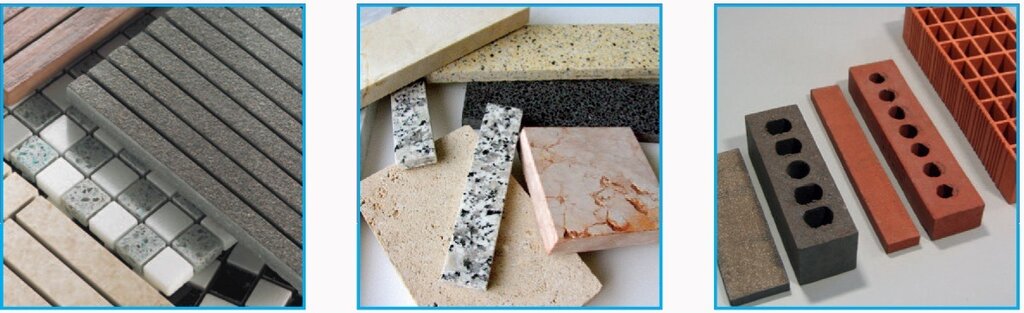

Automatic machine for cuts, antislip incisions, pre-cut and special cut such as: mosaic, triangle, rombhus. Able to work with marble, granite, gres porcelain, agglomerated, brick and single-double firing.

ADVANTAGES OF TMC SYSTEM
- On the shaft of motor-spindle it is possible to mount till 4 cutting blades, divided by spacers and flanges, in order to obtain different sizes and multiple cuts contemporarly.

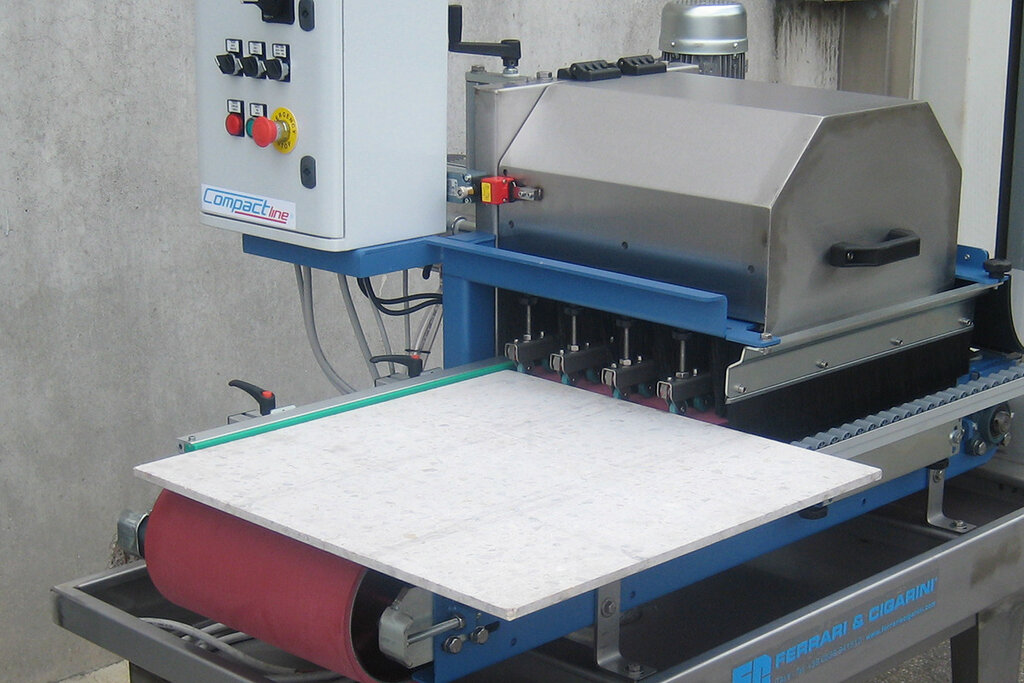

- The motorized conveyor belt improves the working quality and allows the production of pieces continuously.
- The guide positioned on motor side and the pressor bar guarantee, during working phase, a strong stability and an high level of finishing piece.
- All adjustments are facilitated by the use of handwheels and they do not require the use of tools.
- A lateral roller allows to lay the big sizes to be worked.

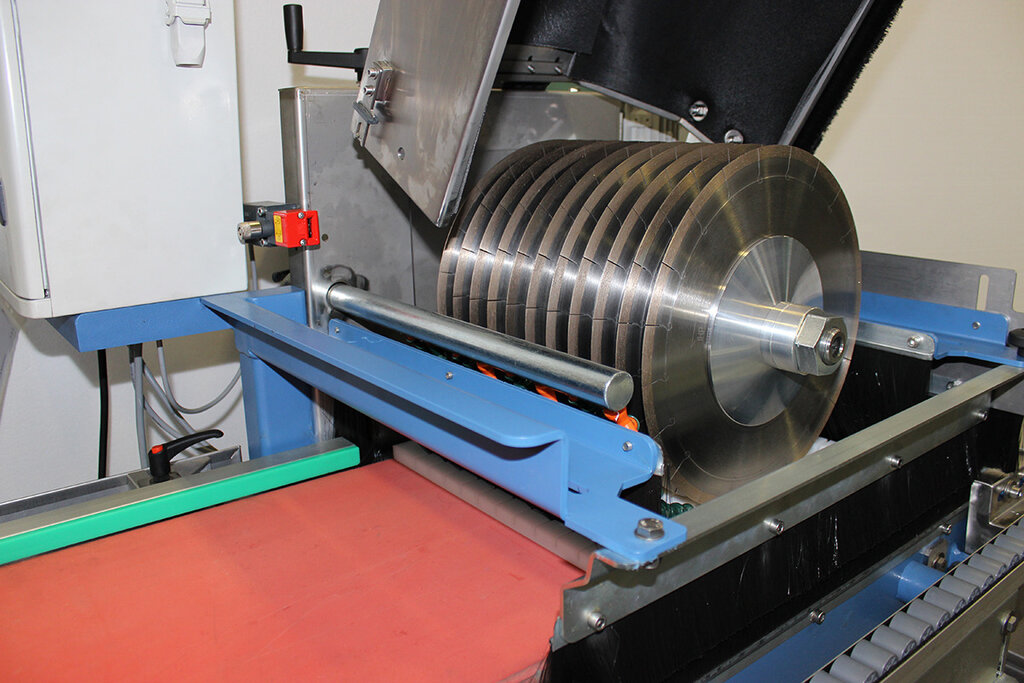

SPECIAL EQUIPMENT FOR MOSAIC CUTTING:
On the shaft of motor-spindle it is possible to mount a mosaic kit with 11 cutting blades in order to obtain mosaics on a maximum thickness of 9 mm.
